The global standard for electrofusion  jointing

It is vitally important that the joints in a pressure pipeline are well made in order to provide a robust and reliable solution for the life of the system. The Frialen range of electrofusion fittings has been engineered to provide the highest quality joints for polyethylene pipes, creating a fully homogenous system that network operators can depend on.

The unique design of Frialen electrofusion fittings incorporates exposed heating coils to provide consistent heat transfer during fusion and to achieve maximum bonding between the materials. We maintain close contact with our customers all over the world to discover the real world challenges of installations and develop solutions that are easier to install and more reliable in service.







System overview

  • Exposed heating coils for consistent heat transfer
  • Longer fusion zones for greater reliability
  • Larger fitting insertion depth
  • Reduced pipe misalignment
  • Range conforms to wide range of global standards
  • Unrivalled range of specialist products to solve customers needs

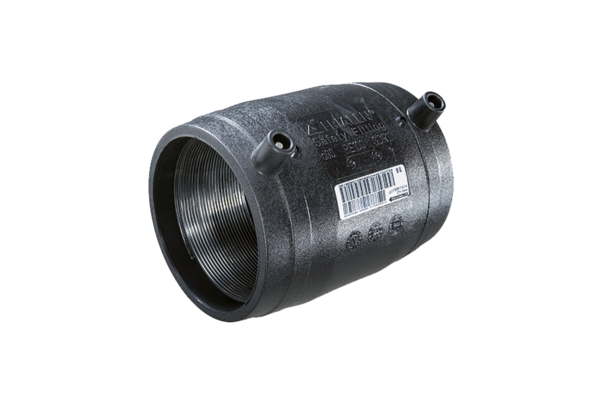

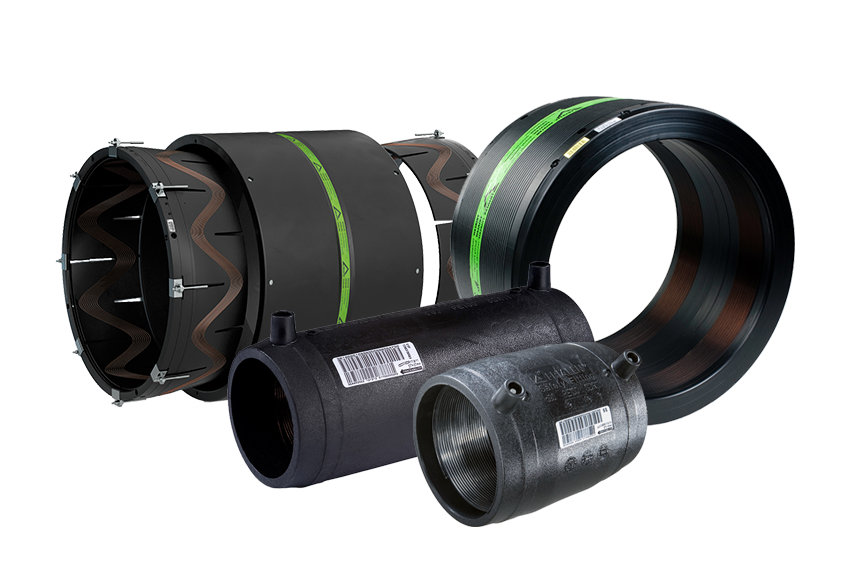

Couplers

The Frialen range of couplers is unique in providing a wide range of electrofusion options that offer a solution for any jointing challenge. The core offering of SDR11 and SDR17 couplers is complemented with solutions that have been engineered for higher pressures and other challenges faced at installation.

  • Standard range of SDR11 and SDR17 couplers
  • Bespoke couplers for SDR7.4 and SDR9 pipe
  • Extended body couplers to counter pipe-end-reversion
  • Conical ring couplers to counter pipe ovality
  • Sizes 20mm to 1200mm

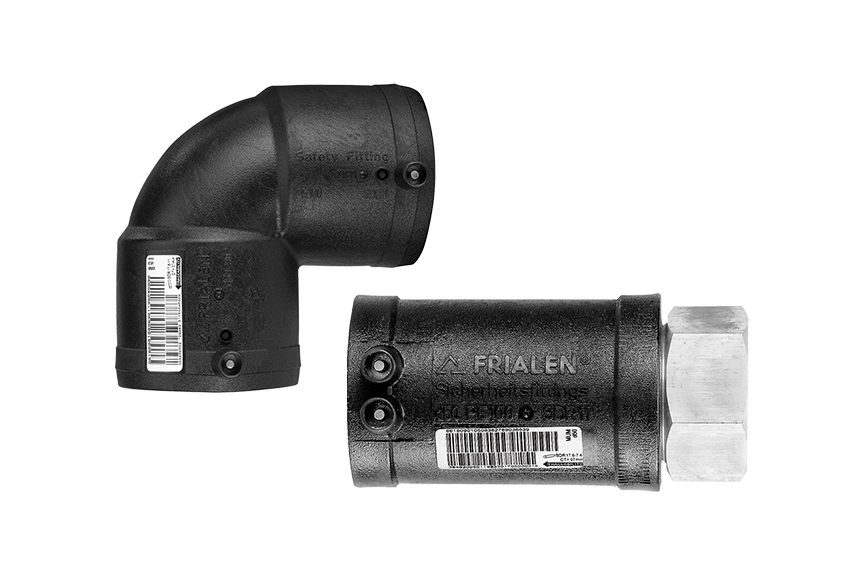

Connections

The Frialen range includes a comprehensive range of connection types and shapes, with both a standard range and groups of specialist fittings to meet the needs of any project. The standard offering consists of elbows, tees, endcaps and transitions fittings, and is complemented by a range of XL fittings that extend the range of elbows and tees up to 315mm.

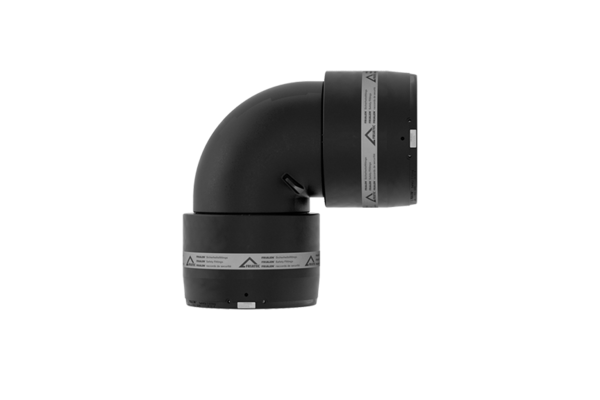

  • Bends available in 90o, 45o, 30o and 11o in sizes 20mm to 315mm

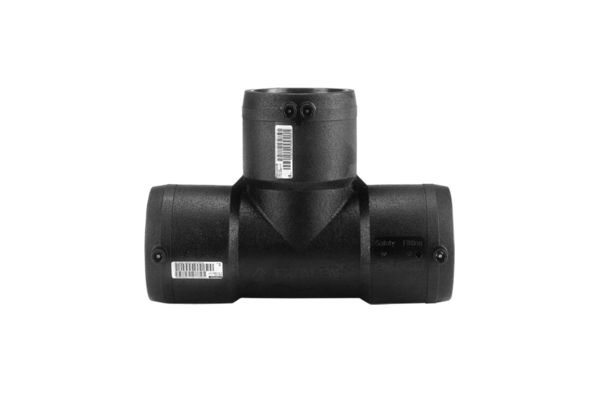

  • Equal and reduced-branch tees from 20mm to 315mm

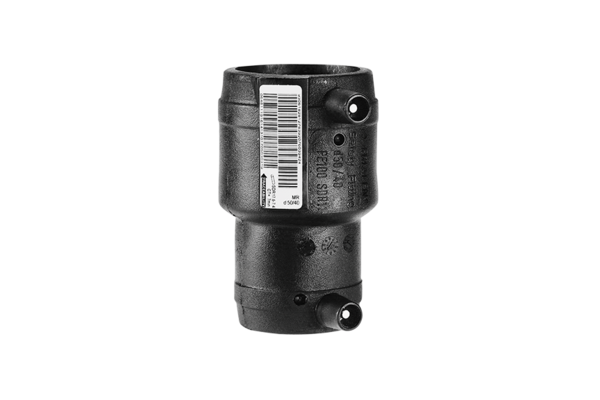

  • Reducers from 20mm to 225mm
  • Endcaps from 20mm to 225mm

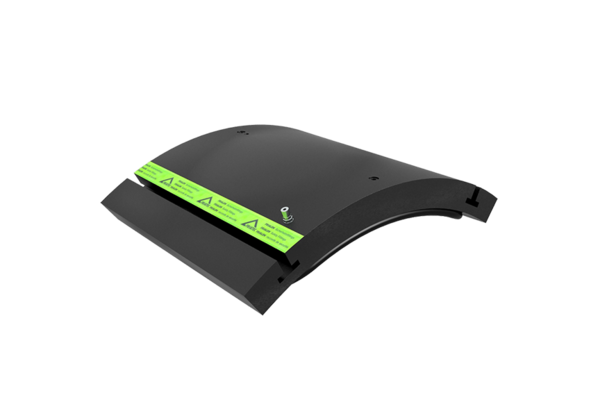

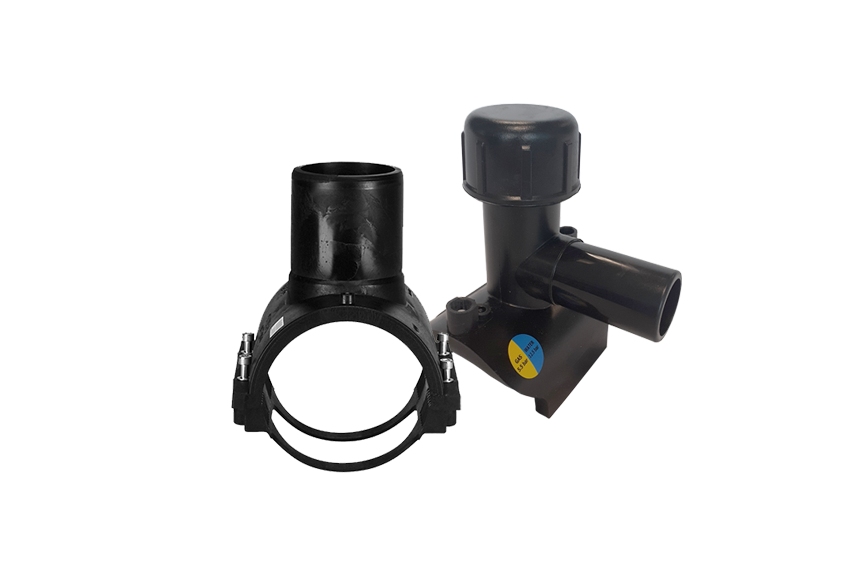

Saddles

The Frialen range includes a comprehensive range of saddles with a diverse range of outlets, including the award winning vacuum saddles. All of our saddles can be used on mains pipe that is unpressurised or under pressure, and allow for leak-free tapping. Our under-clamped tapping tee houses a sealed cutter ensuring there is no leakage during the tapping operation, and our unique vacuum saddles
ensure a close fit between the pipe and fitting before the weld process begins, giving a robust joint and complete peace of mind.

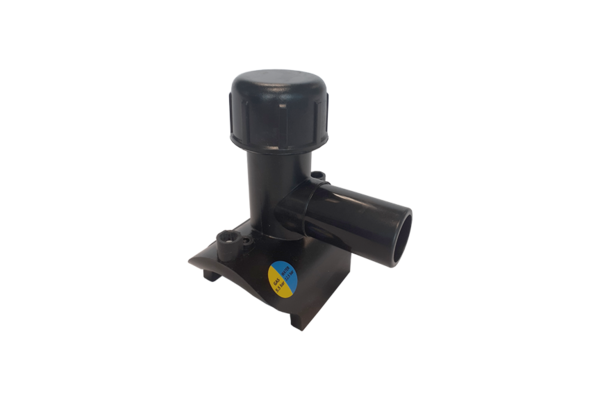

  • Top-loading and under-clamped tapping tees with 25mm, 32mm and 63mm outlets
  • Spigot saddles sizes 90mm to 1200mm
  • Repair saddles to resolve damaged pipe sections
  • Unique vacuum technology to ensure a successful weld on larger sizes

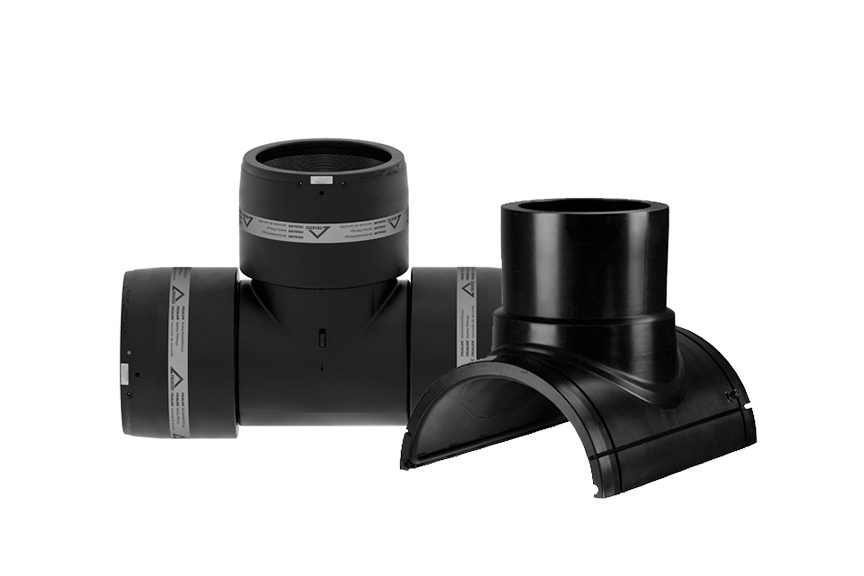

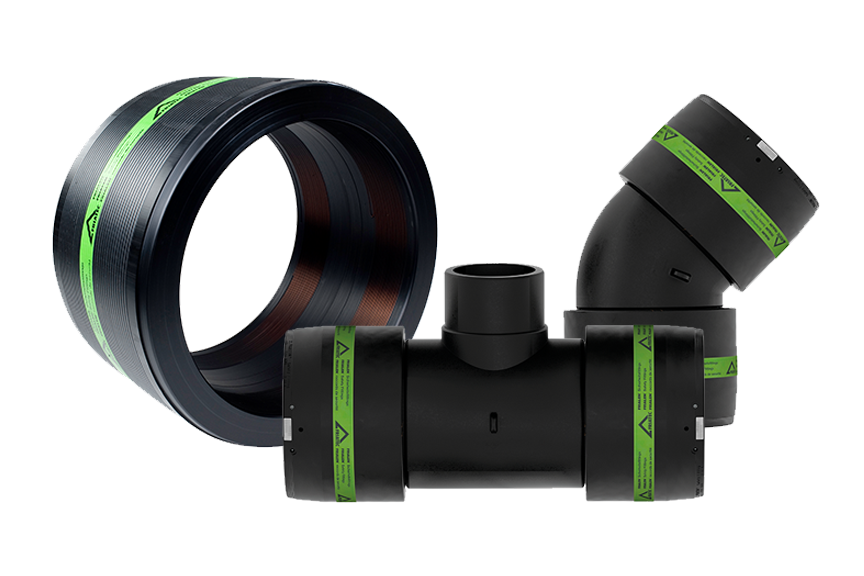

Unique electrofusion solutions

Our continuous innovation has developed some of the most unique electrofusion solutions in the world, from our bi-filament couplers that allow one side of the coupler to be fused at a time, to the conical-ring couplers and vacuum saddles that address installation challenges like no other fittings can. We always focus on the needs of the designer, installer and asset operator, and provide dedicated technical support throughout the supply chain.

  • Product training
  • Installation advice
  • System design support
  • Bespoke fabricated solutions

Find out more about our technical support services




Frialen range

Couplers
Elbows
Tees

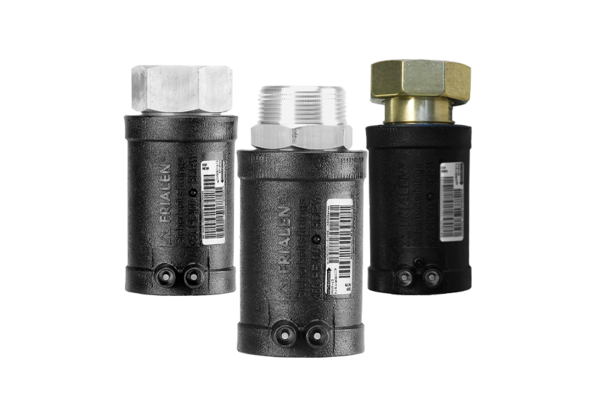

Transition fittings
Reducers
Saddles
Top-load tapping tees
