The complete gas supply system

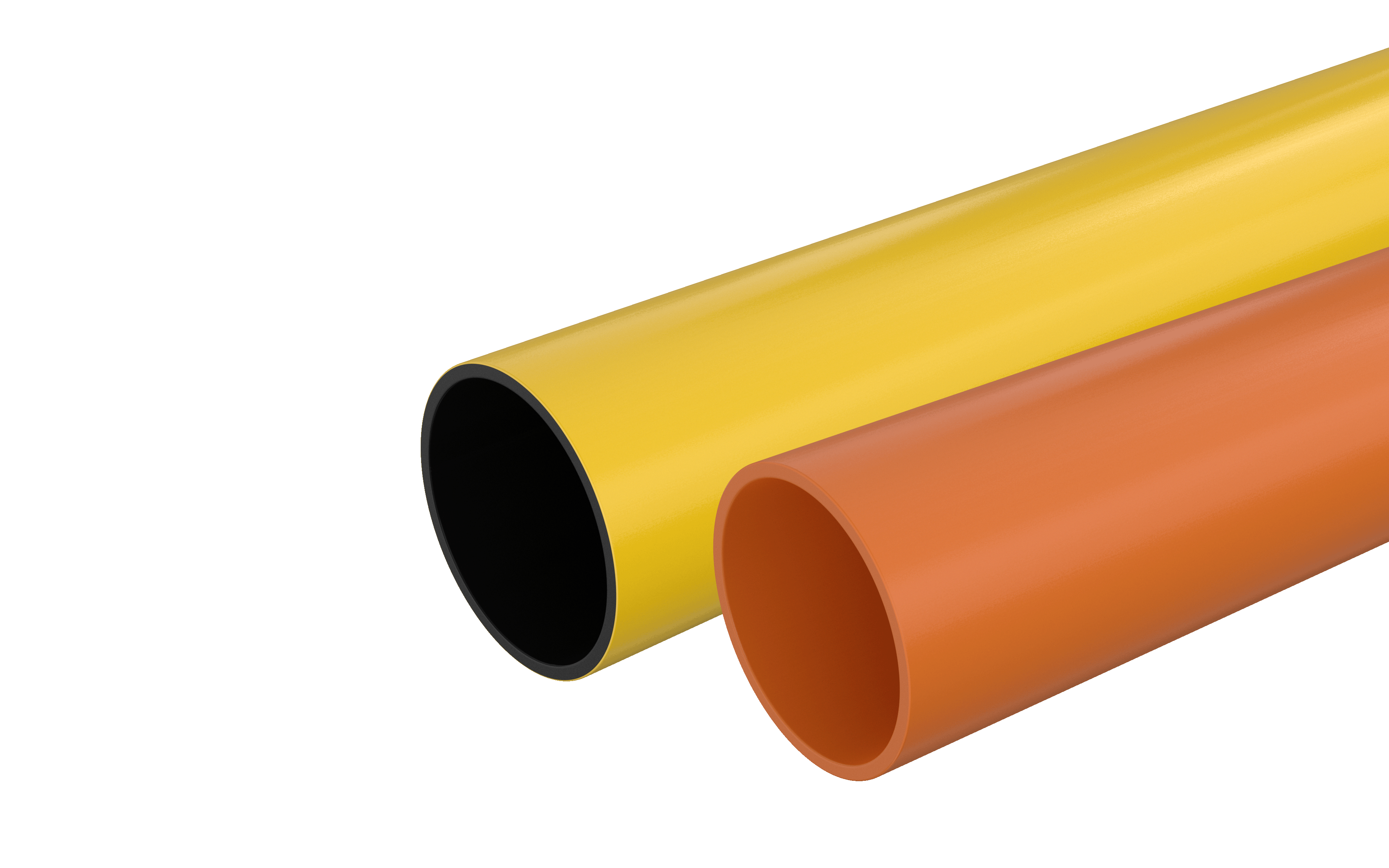

The GPS PE Yellow system provides the complete solution for pressurised gas supply networks, manufactured from high performance polyethylene pipes, complete with a wide range of fully compatible and approved fittings options.

Leading gas utilities, engineers and construction companies rely on GPS PE Yellow as the ideal solution for new installations, pipeline replacement and rehabilitation due to its flexibility and ease of installation. The system is lightweight, corrosion-free, and provides a robust, fully-welded system with butt-fusion or electrofusion jointing for maximum joint integrity and an extensive service life. GPS PE Yellow offers excellent lifetime cost savings compared to traditional materials, and is fully compliant with GIS.







System overview

  • Flexible and lightweight for ease of installation
  • Corrosion resistant
  • Minimum maintenance requirements
  • Complete pipe and fittings range
  • Excellent lifetime cost savings
  • GIS PL2-2 and GIS PL2-8 approved
  • Sizes 16mm to 800mm

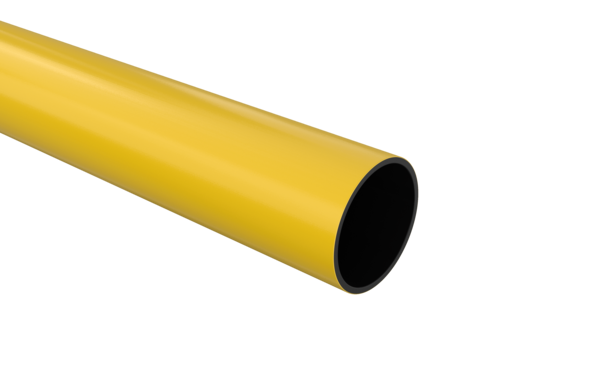

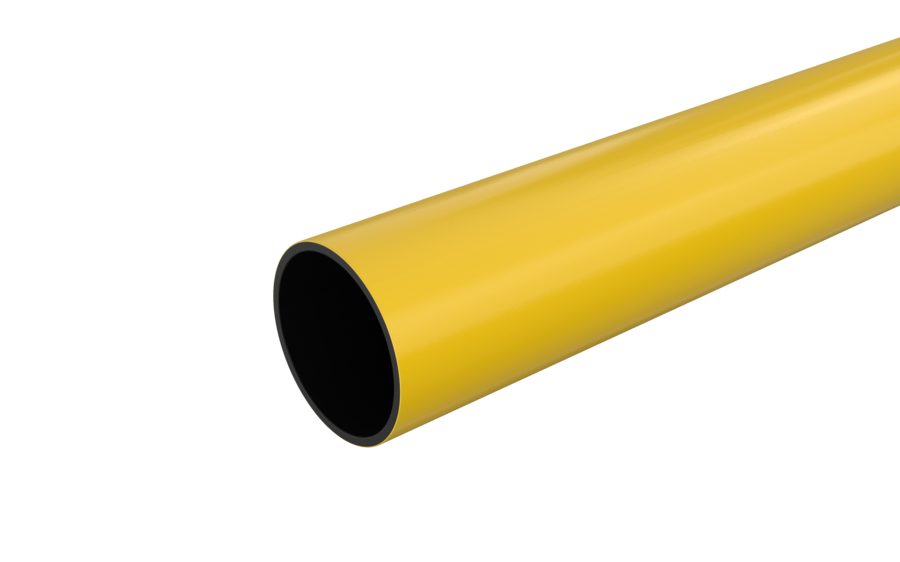

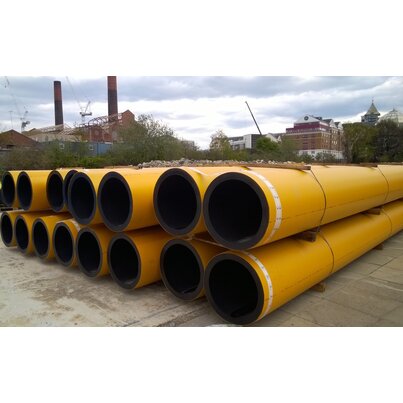

GPS PE Yellow pipe

GPS PE Yellow pipe is flexible and lightweight, can be installed using trenchless methods such as directional drilling as well as traditional open-cut techniques. The high quality polymer allows for a fully welded, pressurised pipeline system with a wide range of sizes and pressure ratings.

  • Flexible and lightweight for ease of installation
  • Suitable for trenchless installation methods

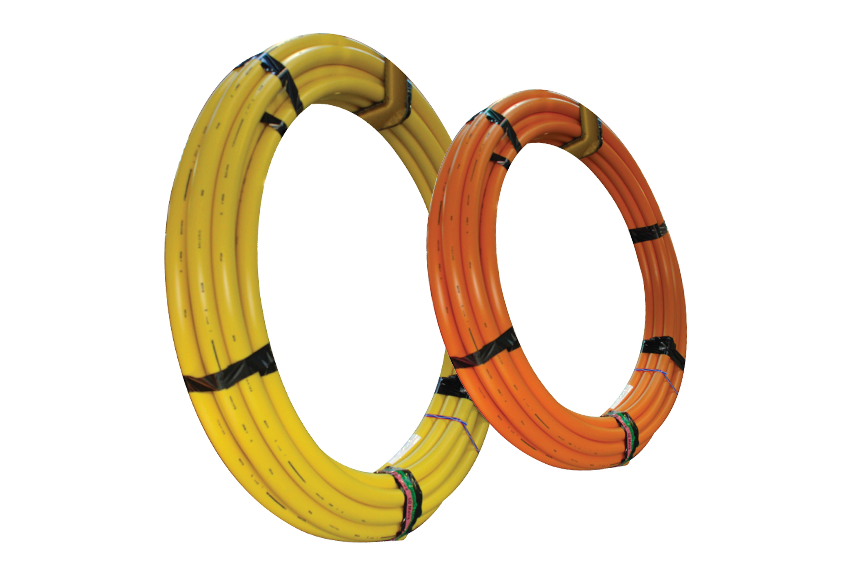

  • Available in straight lengths and coils
  • Up to 2 bar pressure rating
  • GIS PL2-2 approved
  • Sizes 16mm to 800mm
  • Bespoke diameters, lengths and pressure ratings available to order

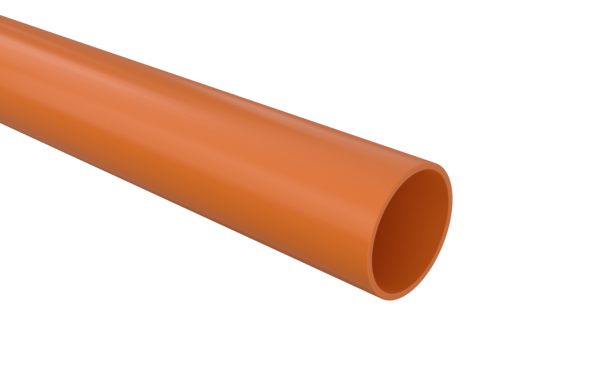

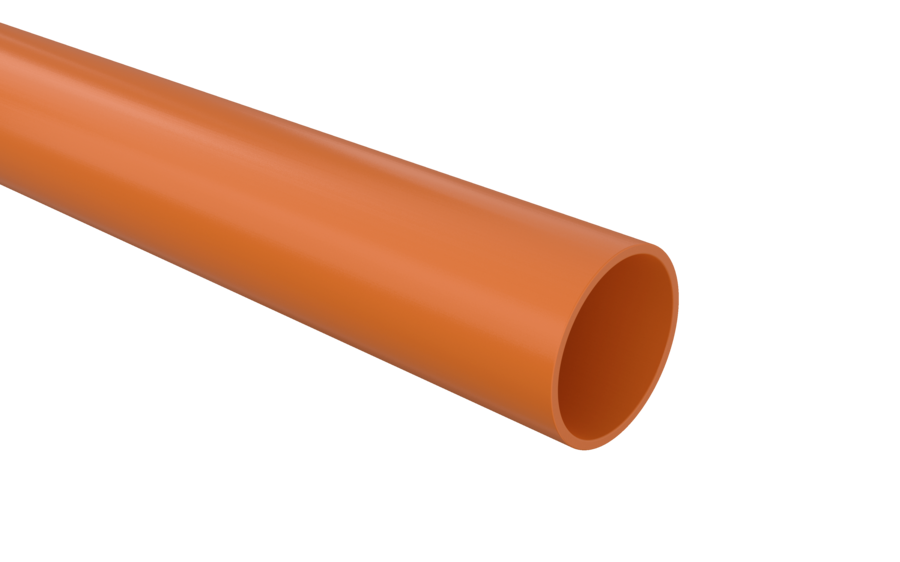

GPS PE Orange pipe

Designed specifically for intermediate pressure gas applications, the high performance GPS PE Orange pipe provides all the benefits of polyethylene, combining maximum installation and performance efficiencies with optimum cost. GPS PE orange pipe can be installed using traditional open-cut techniques and trenchless methods such as directional drilling.

  • Flexible and lightweight for ease of installation
  • Corrosion resistant
  • Minimum maintenance requirements
  • Excellent lifetime cost savings vs traditional materials
  • Suitable for trenchless installation methods
  • Available in straight lengths and coils
  • 2 bar - 7 bar operating pressure
  • GIS PL2-8 approved
  • Sizes 63mm to 630mm

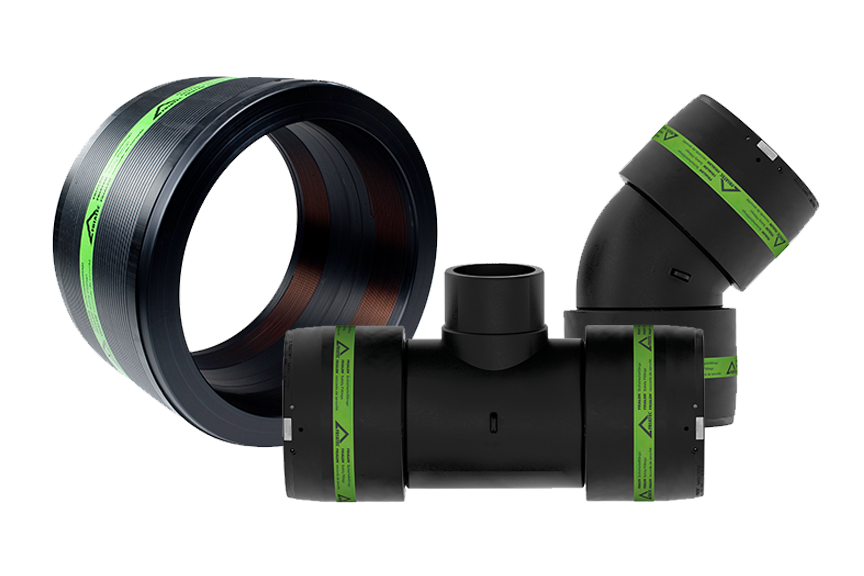

Frialen electrofusion fittings

The Frialen range of electrofusion fittings has been engineered to provide the highest quality joints for polyethylene pipes, creating a fully homogenous system with GPS PE Yellow pipe that network operators can depend on. Their unique design incorporates exposed heating coils to provide consistent heat transfer during fusion and to achieve maximum bonding between the materials.

  • Exposed heating coils for consistent heat transfer
  • Longer fusion zones for greater reliability
  • Larger fitting insertion depth
  • Reduced pipe misalignment
  • Range conforms to wide range of global standards
  • Unrivalled range of specialist products to solve customers needs

Find out more about our Frialen electrofusion fittings

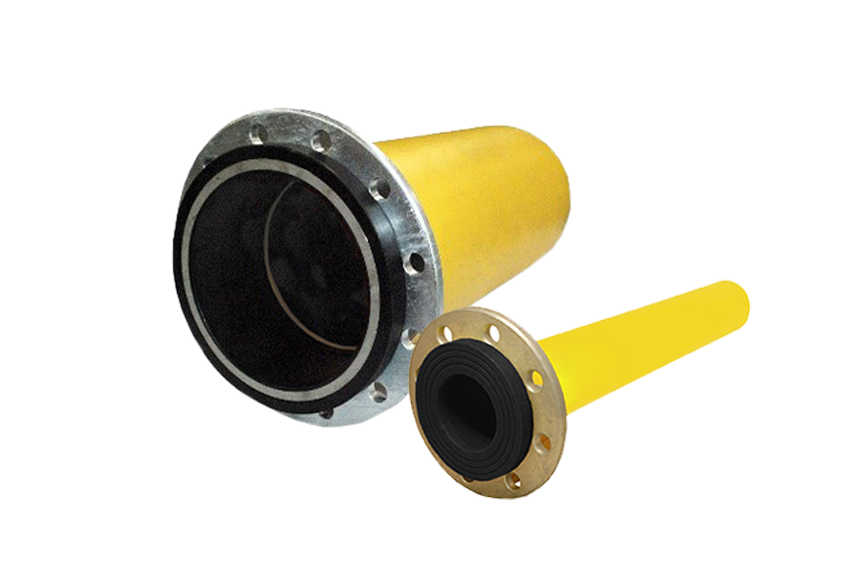

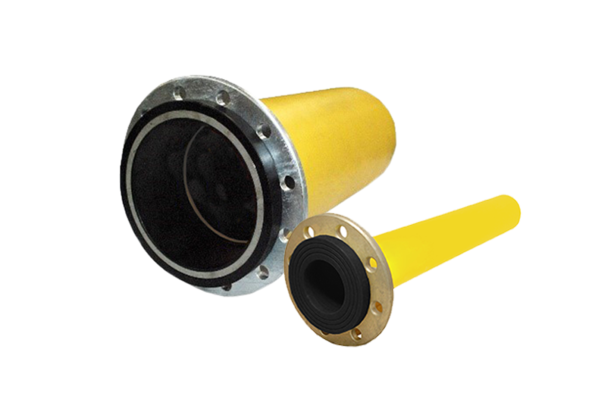

Flange connections

Our unique SlimFlange is part of our wider portfolio of flange connection options which includes a range of traditional stub flanges. SlimFlange is a unique steel-reinforced flange adaptor that allows bore-size-for-size jointing of a PE pipe to a metal flange. Compact and lightweight, it eliminates the need to upsize valves or other metal fittings, providing asset operators and installers with a faster, more compact and cost effective solution.

  • Stub flanges in sizes 63mm to 800mm
  • SlimFlange in sizes 250mm to 560mm
  • Suitable for electrofusion and butt-fusion jointing
  • Compatible with GPS PE Yellow pipes and fittings
  • Bespoke lengths available to be tailored to individual site requirements

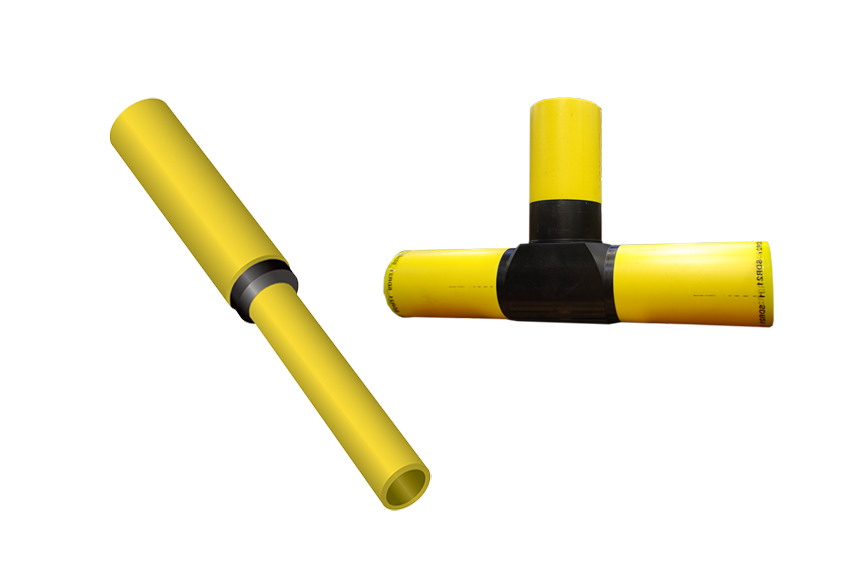

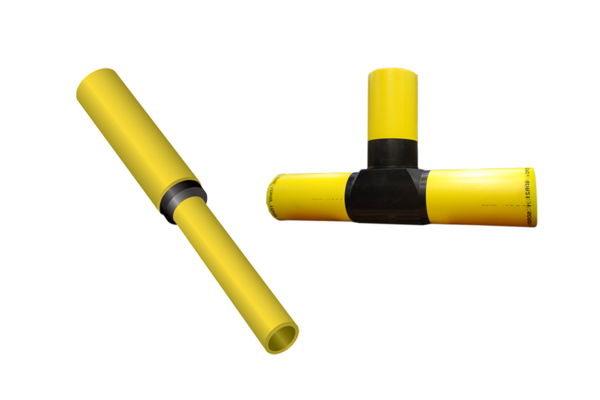

Spigots and fabricated fittings

GPS PE Yellow spigot fittings are supplied complete with pupped outlets ready for electrofusion or butt-fusion, eliminating the need for additional pupping at installation. The range comprises a wide variety of shapes which includes mitred bends, equal and reduced tees, reducers and stub flange assemblies. Together with our technical design service, we provide solutions for both innovative new pipeline design and existing complicated pipe networks, offering a superior quality experience to specifiers, designers and installers without the need to compromise on operating pressure or retention of existing complicated infrastructure.

  • Suitable for electrofusion and butt-fusion techniques
  • Excellent performance without reduction of operating pressure
  • Compatible with GPS PE Yellow pipes and fittings
  • Bespoke options available to be tailored to individual site requirements
  • Available in a wide range of shapes and pressure ratings
  • Sizes 63mm to 800mm

Find out more about our bespoke fabrications service




GPS PE Yellow range

GPS PE Yellow pipe
GPS PE Orange pipe

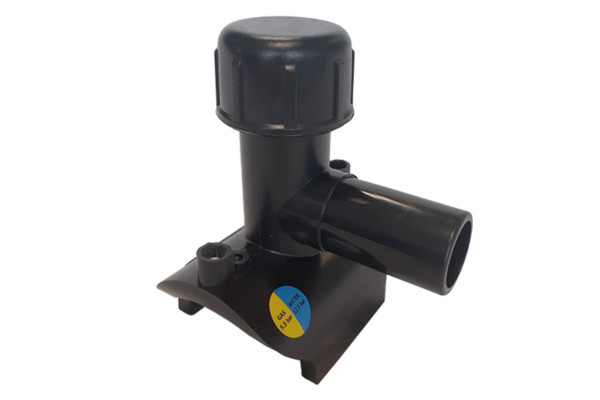

Top-load tapping tees
Electrofusion fittings
Flange connections
Spigots and fabricated fittings
