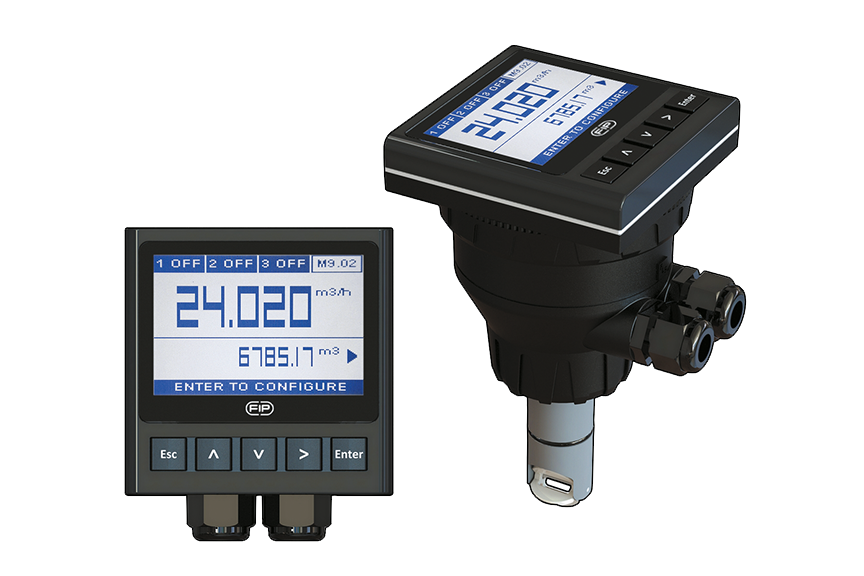

Range overview

Our range of flow measurement devices offer accurate measurement and control in a range of industrial processes where accuracy and efficiency is essential. Including solutions for flow velocity, flow control, pH/ORP and conductivity, our range is supported by our dedicated Flow Team and can be tailored to meet the specific requirements of any application.

  • Corrosion resistant
  • Easy to install
  • Easy access for planned maintenance or replacement
  • Accurate measurement of flow velocity, pH/ORP and conductivity

Contact the Flow Team on 01543 471680

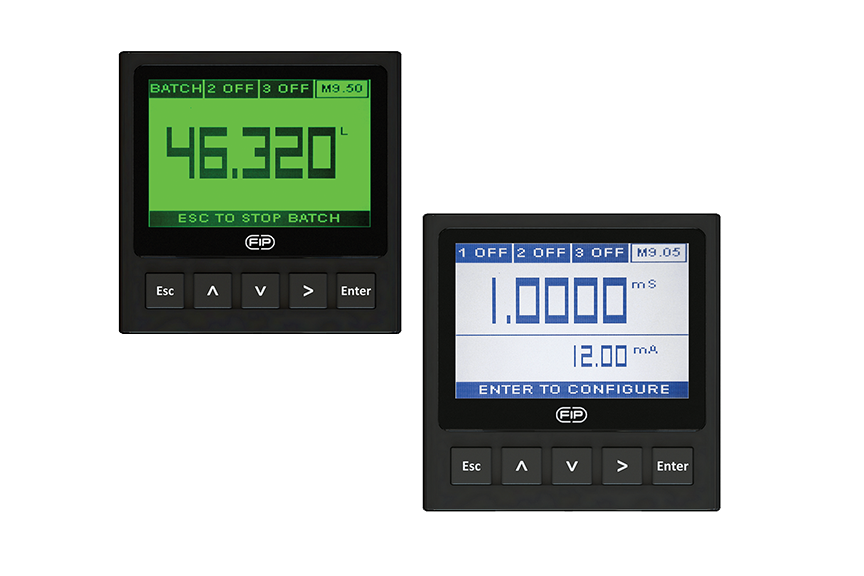

Monitors and displays

Our range features display options for accurate output readings ranging from flow, batch, pH/ORP, pressure level and dual parameter options.

  • Manual override feature as standard
  • Illuminated backlights as standard
  • Solid state and mechanical relays
  • 4-20mA output options
  • Panel, wall or field/compact mount

Contact the Flow Team on 01543 471680

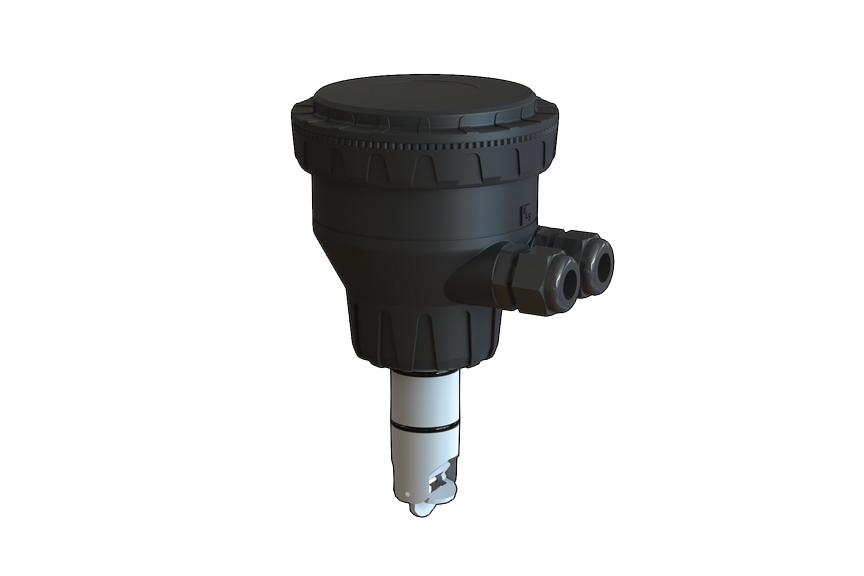

Sensors

Our sensor offering includes paddlewheel, magmeter, flow switch, pressure/level and pH/ORP.

  • IP65 or IP68 options
  • Installation fittings including tees and saddles
  • Various insertion lengths available (L0 or L1)
  • Ceramic shafts and bearings
  • Sizes 15mm to 600mm

Contact the Flow Team on 01543 471680

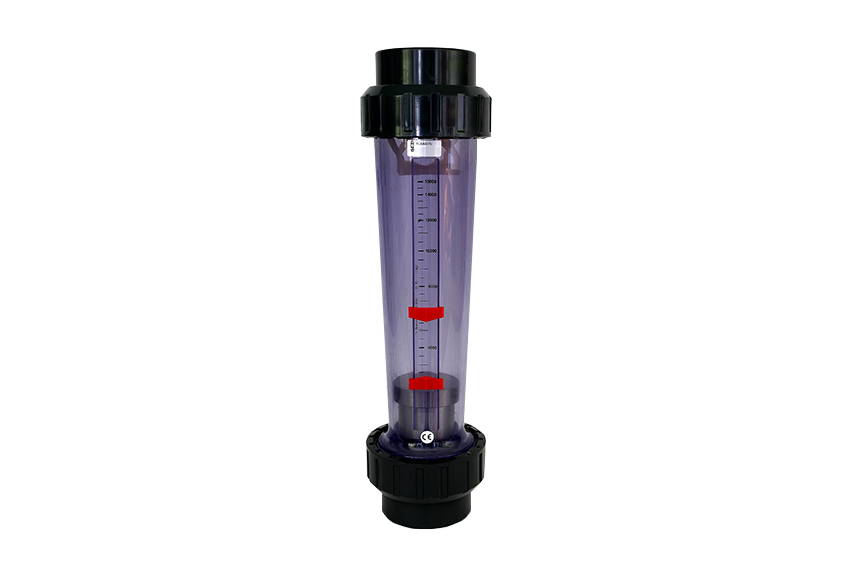

Variable area flow meter

Designed for inline flow measurement and suitable for a range of applications, our vairable area flow meters are available in a range of tube material options with various end connections.

  • Various float materials available - PP/Stainless Steel, with or without magnet
  • Min/max flow switches available
  • End connections in ABS, PVC-U, Corzan CPVC, and Polypropylene
  • Various measurement scale options (min/max)
  • Small or long pattern tube options

Contact the Flow Team on 01543 471680

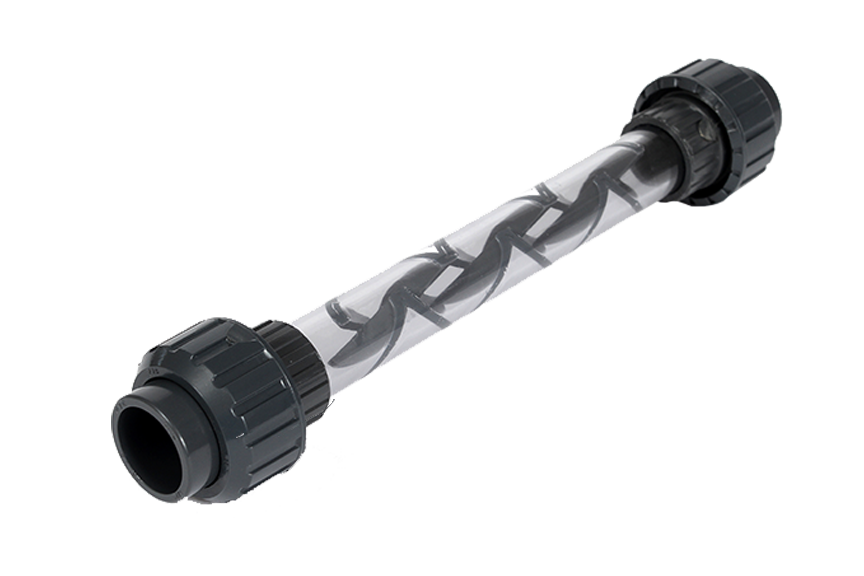

Static mixers

Providing an effective solution with the ability to accurately mix fluids quickly without any moving parts, the static mixer includes a clear PVC-U housing offering effective visual monitoring of the mixing process, and allowing easy identification of maintenance and cleaning requirements.

  • 6 or 12 element mixers available
  • Socket union end connections (plain/BSP)
  • EPDM and FKM seal options
  • Easy access for maintenance and cleaning

Contact the Flow Team on 01543 471680




Downloads

Industrial processes range guide
9.4 MB, PDF get_app
Waste & water treatment
1.4 MB, PDF get_app
Application schematics
Chemical processing
980.1 KB, PDF get_app
Application schematics
Factory services
1.4 MB, PDF get_app
Application schematics
Food and beverage process
859.6 KB, PDF get_app
Application schematics
Power generation
1.3 MB, PDF get_app
Application schematics
Anaerobic digestion
1.4 MB, PDF get_app
Application schematics
