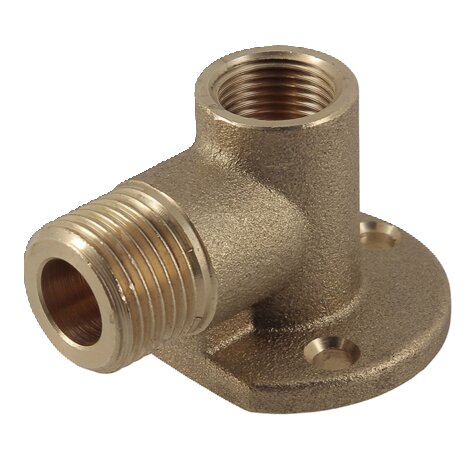

Girair Elbow Wall Plates and Drain Wall Plates (16mm - 25mm and 1/2" - 3/4")
Engineered for durability, designed for precision—Girair wall plates ensure optimal airflow with every connection. Covering diameters from 16mm - 25mm (wall plate elbows) and 1/2" - 3/4" (drain wall plates), it’s the smart solution for high-performance, leak-free compressed air systems.
Built to perform, designed to last - Girair wall plates deliver precision and durability for compressed air ring main systems. With diameters from 16mm - 25mm (wall plate elbows) and 1/2" - 3/4" (drain wall plates), our wall plates ensure smooth and consistent airflow, keeping your system efficient and reliable.
Manufactured from corrosion-resistant materials, it stands up to harsh industrial environments and offers excellent chemical resistance to compressor oils. The equal bend design minimizes pressure loss, supporting up to 12.5 bar and operating temperatures from -10°C to +40°C.
Quick to install and easy to maintain, Girair fittings are lightweight, impact-resistant, and colour-coded in blue for fast identification, it’s the trusted choice for workshops, factories, and demanding industrial applications.
Girair - engineered for clean layouts, strong performance, and lasting reliability.
Main features:
- Designed to withstand maximum pressures of up to 12.5 bar at 25° degrees
- Corrosion resistant
- 10 year warranty from point of purchase
- Impact resistant
- Airtight when used with Girair solvent cement
- Pressure resistant when used in conjunction with Girair solvent cement
- Fire class B-S1 D0
- 98% recyclable content
- Girair range RAL colour (5012) allows easy identification of the system
| Name : | Girair Elbow Wall Plates and Drain Wall Plates (16mm - 25mm and 1/2" - 3/4") |
| Product type 1 : | Fittings |
| Product type 2 : | Girair fitting |
| Fluid : | Air |
| Material : | Other Plastic Material |
| Product Range : | Girair |
| Application : | Compressed air |
| Reference | Size | Pressure rating | SKN weight | Box quantity |
|---|---|---|---|---|
| GAAP12G2 | 2 x 1/2”-1/2” | PN=12.5 Bar under 20°C | 0.3 | 1 |
| GAAP12G4 | 1/2” & 4 x 1/2” | PN=12.5 Bar under 20°C | 0.3 | 1 |
| GAAP12G4P | 1/2” & 4 x 1/2” | PN=12.5 Bar under 20°C | 0.3 | 1 |
| GAAP16 | 16mm | PN=12.5 Bar under 20°C | 0.16 | 1 |
| GAAP20 | 20mm | PN=12.5 Bar under 20°C | 0.24 | 1 |
| GAAP25 | 25mm | PN=12.5 Bar under 20°C | 0.36 | 1 |
| GAAP34G3 | 3 x 1/2”-3/4” | PN=12.5 Bar under 20°C | 0.3 | 1 |
| GAAP34G4 | 3/4” & 4 x 1/2” | PN=12.5 Bar under 20°C | 0.29 | 1 |
| GAAP34G4P | 3/4” & 4 x 1/2” | PN=12.5 Bar under 20°C | 0.3 | 1 |
